Hylec's operating sticks are made from high quality foam-cored tubes that can be used on high voltage applications. With a universal (sunrise) end fitting, you can easily attach different adaptors to apply i.e. Earthing, Contact and Non-contact votlage detectors, Disconnect hooks etc.

Hylec has the capability to manufacture different lengths or with different end fittings as per the customers requirements.

FAMECA has been known for over 70 years as a manufacturer of composite insulating tubes. FAMECA's long experience in the field has led it to develop a foam-cored tube that meets the requirements of international standards IEC 60855 and ASTM F711. This process guarantees; perfect homogeneity of the foam inside the insulating tube & unfailing tightness thank to a foam-resin-glass fibre interface which fills the open cells on the surface of the foam, mazimising the level of insulation by preventing any humidity from penetrating at all.

Specifications:

• Fibreglass composite tube, foam-filled
• Diameter: Ø 32mm
• Dielectric strenght 100kV per 300mm
• Complies to IEC 60855 standard
• Colour: High visibility yellow

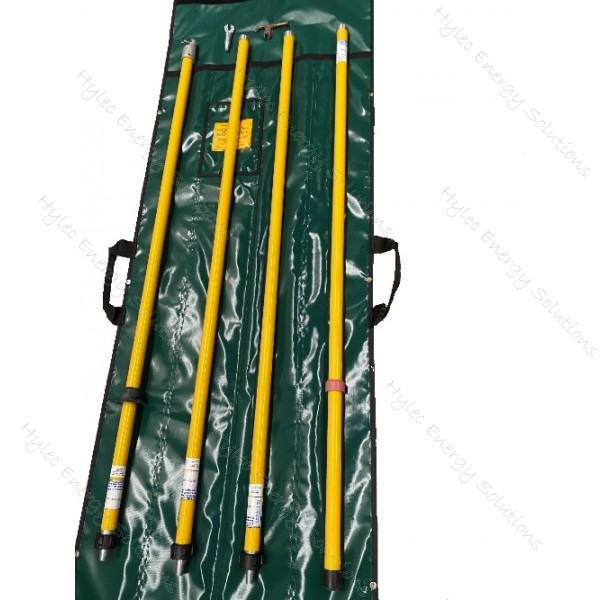

• Kit consist of the following;
•           1x 1.5m Operating insulating stick with universal / sunrise end fitting
•           3x 1.5m Extension section insulating stick with screw type adaptor
•           1x Universal to Fuse puller adaptor (Pigtail)
•           1x Universal to Switching hook adaptor
•           1x Carry bag to suit with pockets
